Design & Analysis

Design & Analysis

We specialize in vacuum furnaces for extreme processes and focus our development
capabilities on providing optimal solutions to customer needs.

THERMVAC
FURNACE

  • CAE

    - FEA (Finite Element Analysis)

    - STRUCTURAL ANALYSIS

    - HEAT DISTRIBUTION

    - FLUID DYNAMICS

    - PROGRAM USED : SOLIDWORKS,
      ANSYS, ABAQUS, etc.

  • DESIGN

    - VACUUM CHAMBER

    - HEATER & ELECTRODE

    - MUFFLE & INSULATION

    - H/EX & STRUCTURE

    - PROGRAM USED : 2D CAD

  • 3D MODELING

    - OPTIMIZATION DESIGN

    - INTERFERENCE CHECK

    - MINIMIZE PRODUCTION ERROR

    - PROGRAM USED : SOLIDWORKS

  • CALCULATION

    - THERMAL

    - ELECTRICITY

    - GRAPHITE HEATER

    - MECHANICS

    - ASME / PED

    - LOCAL REGULATION (KOSHA, KOGAS etc)

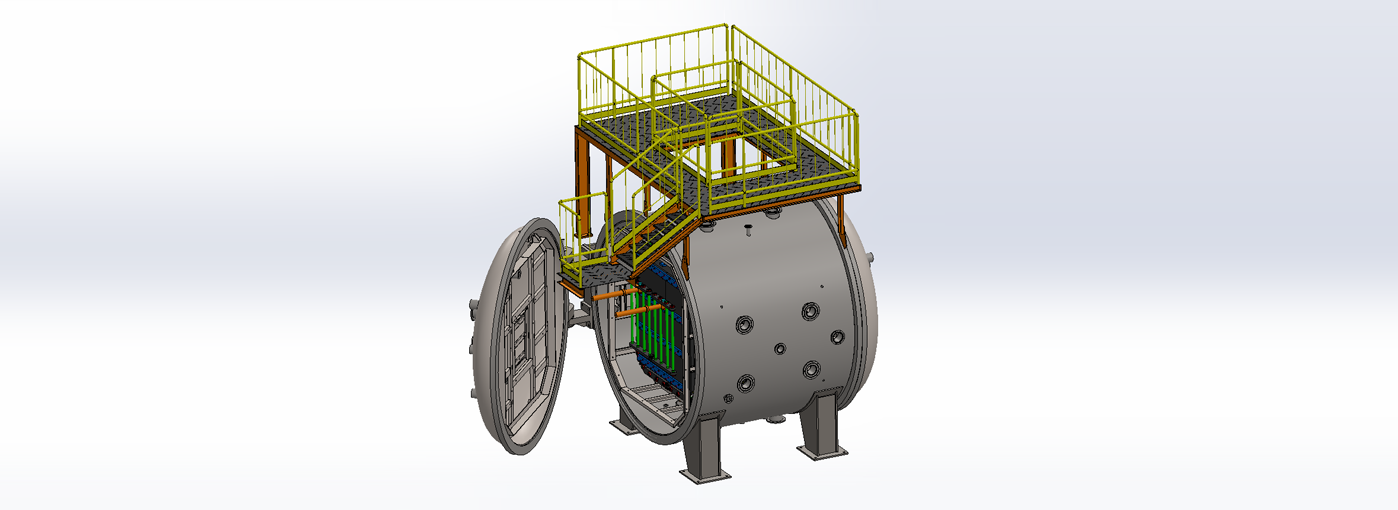

2D & 3D DESIGN

FEA (FINITE ELEMENT ANALYSIS)

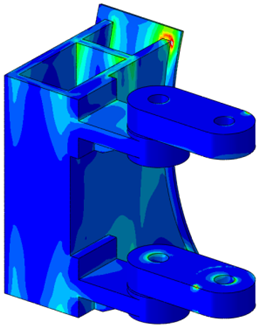

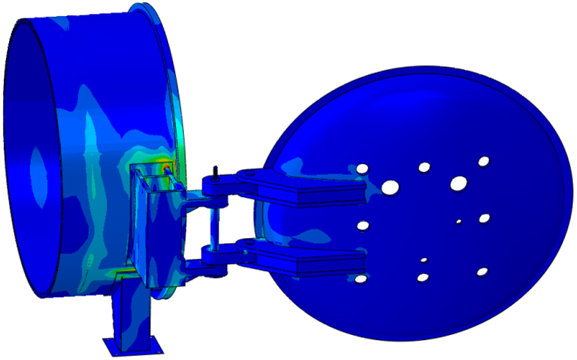

- STRUCTURAL ANALYSIS

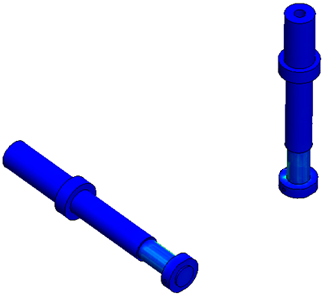

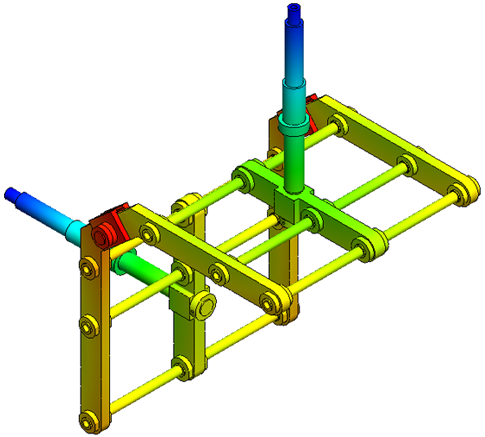

- THERMAL DISTRIBUTION & STRUCTURAL ANALYSIS

DESIGN TEMPERATURE : 2400℃

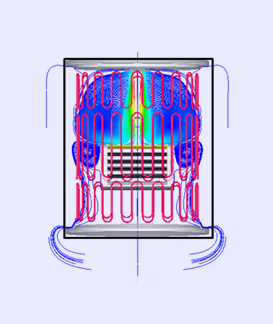

CFD(Computerized Fluid Dynamics) ANALYSIS

  • Design of uniform zone

    - Analysis of radiation & transfer
    - Allocation of heating elements
    - Partitioning of heating circuit.

  • Effect analysis of gas flow

    - Gas flow rate and velocity
    - Forecast of gas flow direction
    - Location of gas inlets and outlets.

Optimization of work zone design by CFD

Parameter analysis

  • Heating parameters

  • Flowing parameters
