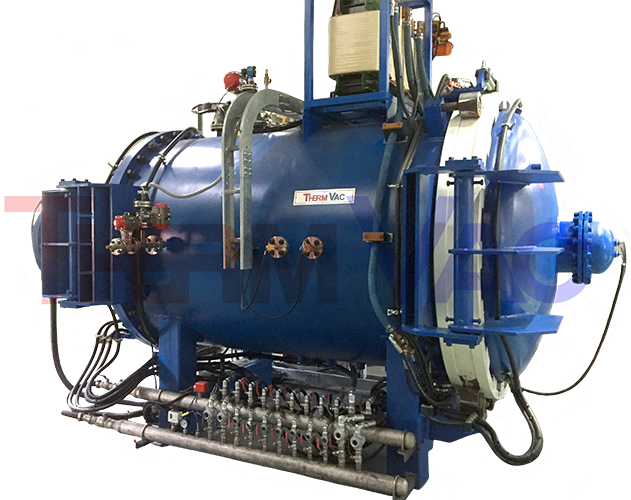

Gas pressure quenching Fce

Features - High efficiency and performance, Easy maintenance

  • Temperature uniformity of
    ±5℃ in all standard models
    with optimal hot zone design
    　

  • Maintenance easy
    heater system of
    partitioning/assembling
    type

  • Long life of insulation, being
    made of graphite rigid felt
    with C/C cloth lining
    　

  • Compliance to WPS(Welding
    Procedure Specification),
    ASME Sec. Ⅸ &
    EN ISO 15614-1

  • Internal cooling system of
    high space efficiency and
    low energy consumption
    　

  • Easy access to heat exchanger
    and blower through the rear
    door flange without passing
    through the hot zone

  • 360° showering nozzles,
    which are detachable for
    easy modification of nozzle
    diameter

  • Selective system control
    from simple touch panel
    GUI to integrated, remote
    PC HMI

Standard specifications

Item Specification Item Specification
Furnace type Horizontal pressure vessel furnace Heater system CIP graphite
Application Gas pressure quenching heat treatment Insulation Graphite rigid felt with C/C cloth lining
Temperature 1050 ~ 1350℃ Heating Atm. Vacuum, Nitrogen partial pressure
Loading capa. 300 ~ 2500Kg Cooling Atm. 0.3 ~ 0.9 MPa Nitrogen
Uniformity ±4 ~ 10℃[1000℃, no load, 9 ~ 13 points] Evacuation MBP + Oil rotary pump
Heat-up rate 5 ~ 10℃/min Leak Rate Below 1×10-3 Pa・㎥/sec
Heating circuit 2 ~ 6 circuits Forced cooling Heat exchanger & Blower
Temp. measure K type, J type or C type T/C System control PLC control, Touch or PC interface

Standard dimension

Product File DOWNLOAD
Model code TVQHT-
S400		 TVQHT-
S600		 TVQHT-
S800		 TVQHT-
S1000
Work zone 400 * 400 * 600 600 * 600 * 900 800 * 800 * 1200 1000 * 1000 * 1500
Capacity 300 Kg 600 Kg 1,200 Kg 2,500 Kg
Operating temp. 400 ~ 1,350℃
Uniformity ±4~10℃
Vacuum level 1Pa(MBP+Rotary pump)
Electricity 100 KVA 180 KVA 300 KVA 450 KVA
Options 1. Cooling gas pressure: 2, 6, 9 Bar
2. High vacuum pump : Diffusion oil pump, Cryogenic pump
3. Convection heating : Circulation fan operated under 800℃
4. External cooling with heat exchanger and blower outside chamber
5. Closed water circulation, sample loading car, gas buffer tank
6. Remote controllable PC integrated HMI system
