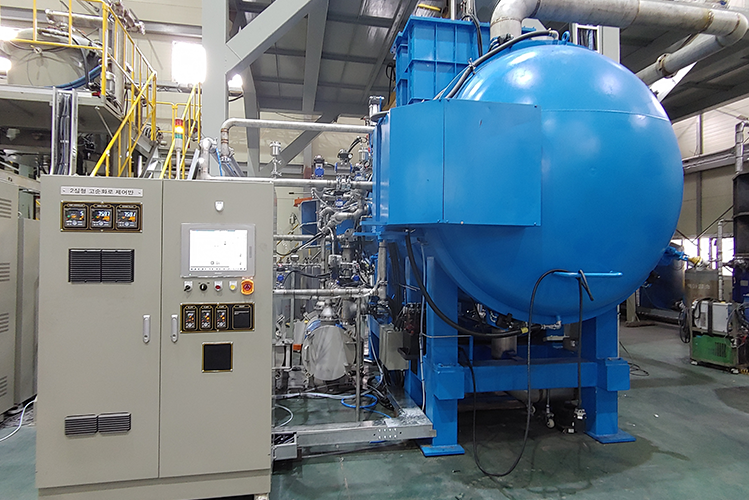

Carbon Purification Furnace
This is an ultra-high temperature vacuum furnace in which a muffle is installed inside a horizontal or vertical graphite hot zone. Samples of carbon-based materials or parts such as bulk, fiber, and powder are loaded into the muffle and heated to 2,300°C or higher under vacuum or partial pressure control conditions while flowing chlorine or fluorine-based halogen gas. Thereby, by removing impurities in the form of chloride or fluoride, samples shall be highly purified.
Features - DC Power supply optional
-
Closed electrode structure featuring minimal radiant
heat loss and the suppression
of electric discharge
-
Triple protection of the dry
pump by inlet filtration,
pump’s self-cleaning and pro-
hibition of exhaust back flow
-
Life extension of hot zone
through separate control of
pressures between Cl2
gas
and N2 protective gas
-
Securing accuracy of temp.
control through optimal
shift
of the thermocouple
and
the pyrometer
-
Triple surveillance devices of
power or temperatures to
prevent overheating accident
of ultra high temp. furnaces
-
Design of heating load
securing prevention of
electric discharge as well as
life extension
-

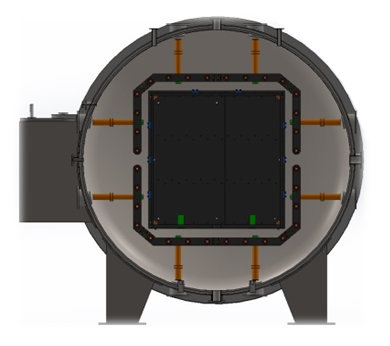

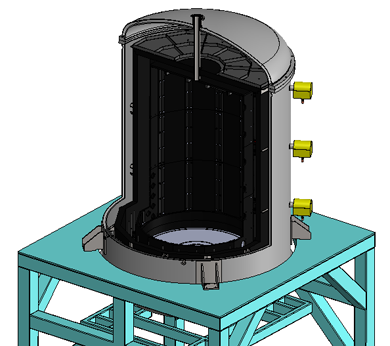

Horizontal type or vertical
type all available depending
on product shape or loading
conditions
-
Linked opening and closing
of the muffle and the
chamber door assuring
easy sample loading
