HOT PRESS

Features

  • Full line-up from the diffusion bonding type of normal
    temp. to the ceramics sinter
    type of high temp.

  • Horizontal chamber or
    vertical chamber all available depending on loading
    conditions

  • Hot zone structure of easy
    sample loading and
    maintenance

  • ‘Multi chamber of single
    press’ model and ‘multi
    press of single chamber’
    model all available

  • Integrated control of gas flow, temperature and pressure by
    time signal or by event

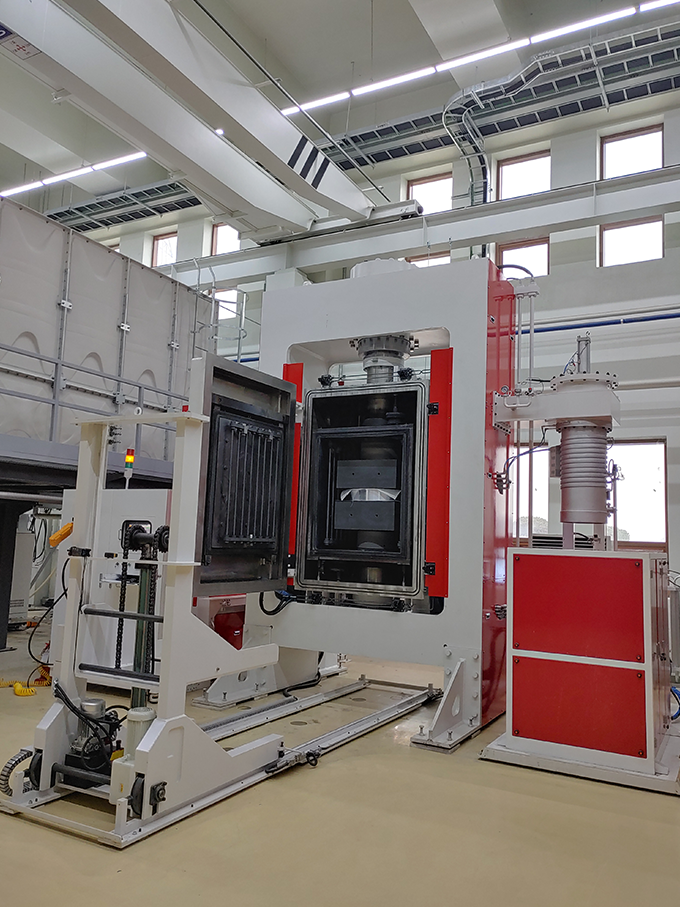

Diffusion Bonding Hot Press Standard specifications

Product File DOWNLOAD
Item Specification
Fce type Vertical vacuum furnace with hydraulic press
Application Diffusion bonding of metal parts
Temperature 1100 ~ 1300℃ [max. 1500℃]
Pressing dimension □700 ~ □1000 ㎜
Uniformity ±6℃ [1000℃, no load, vacuum]
Heat-up rate 2 ~ 10℃/min
Pressing tonnage 300 ~ 500 Ton
Ram diameter Φ300 ~ Φ450 ㎜
Stroke 250 ~ 400 mm
Pressing orientation Downward only or Downward & upward
Hot zone materials Graphite
Evacuation Diffusion pump + MBP & Rotary oil pump
Sample Loading Front door opening & loading by the lifter
Forced cooling Insulation shutter, Heat exchanger & Blower
System control PLC control, Touch or PC interface

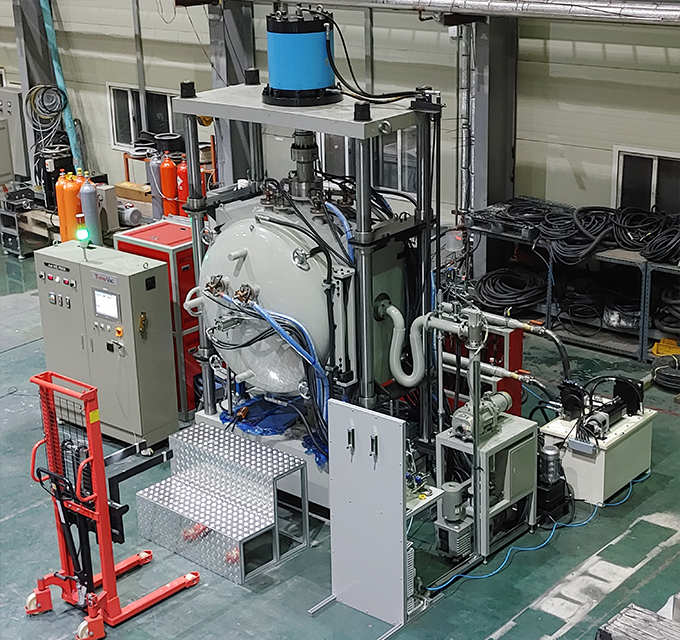

Pressurized Sintering Hot Press Standard specifications

Item Specification
Fce type Vertical vacuum furnace with hydraulic press
Application Pressurized sintering of ceramics powder
Temperature 1500 ~ 2200℃ [max. 2500℃]
Hot zone dimension Ф800 ~ф1200 ⅹ 500H ~ 1200H
Uniformity ±6℃[1000℃, no load, vacuum]
Pressing tonnage 300 ~ 500 Ton
Ram diameter Φ300 ~ Φ450 ㎜
Punch diameter Φ300 ~ Φ600 ㎜
Stroke 250 ~ 400 mm
Pressing orientation Downward only or Downward & upward
Hot zone materials Graphite
Evacuation Diffusion pump + MBP & Rotary oil pump
Sample Loading Front and/or rear door opening
Forced cooling Insulation shutter, Heat exchanger & Blower
System control PLC control, Touch or PC interface

Oxygen Atmosphere Hot Press Standard specifications

Item Specification
Fce type Vertical vacuum furnace with hydraulic press
Application Sintering of ceramics under oxygen gas
Temperature 600 ~ 1400℃ [max. 1450℃]
Process atmosphere Oxygen, nitrogen, argon or vacuum
Uniformity ±5℃[1000℃, no load, vacuum]
Heat-up rate 10℃/min
Pressing tonnage 50 ~ 100 Ton
Ram diameter Φ100 ㎜ [SiC Rod]
Punch diameter Φ100 ㎜ [SiC Disc]
Stroke 100 ~ 250 mm
Pressing orientation Downward only or Downward & upward
Hot zone materials Heater – MoSi2, Insulation – porous alumina
Evacuation Diffusion pump + MBP & Rotary oil pump
Sample Loading Front door opening
System control PLC control, Touch or PC interface
